High current measurement flexible ct rogowski coil Input current : 1-10000A FRC-800-G1 transformer coil with 333mV output

Name: High current measurement flexible ct rogowski coil Input current 110000A FRC800G1 transformer coil with 333mV output
Brand: Customized
Price: 87.52 USD

Wholesale High current measurement flexible ct rogowski coil Input current : 1-10000A FRC-800-G1 transformer coil with 333mV output from china suppliers

Place of Origin : Zhejiang, China

Brand Name : Customized

Model Number : FRC-800-G1

Usage : Current

Phase : Single

Coil Structure : Toroidal

Coil Number : Autotransformer

Coil length : 800mm

Output level (RMS) : 40mV/1kA, 80mV/1kA, 100mV/1kA

Inner diameter : 60mm (±10%)

cable length : 3M

Phase shift : 90°

Operating temperature : from -20℃ to +75℃

Packaging Details : One Rogowski is putted in one Plastic bags, then puted into one Foam box. Finally put Foam box into Export Carton.

Port : Ningbo

Supply Ability : 10000 Piece/Pieces per Month

Price : $87.52/pieces 1-14 pieces

Contact Now

Product Description

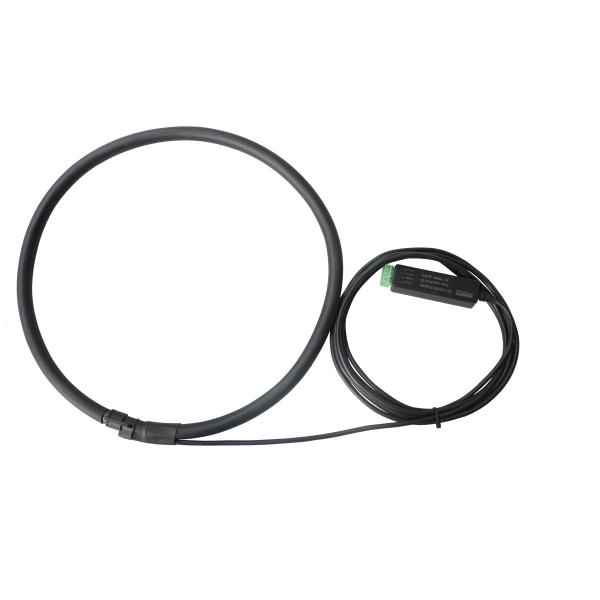

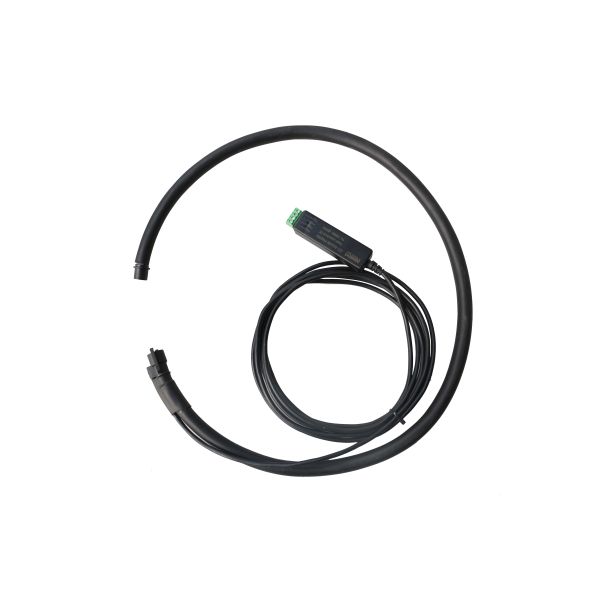

Clamp-on Flexible Rogowski coil Current Transformer is an AC current transducer for permanent installation.

They combine the benefits of a thin, flexible, clip-around Rogowski (sense) coil with a signal conditioner providing

accurate, true rms measurement, of voltage or current.

1) AC current probe utility by the Rogowski principle
2) Flexible and lightweight
3) Coil length from 20cm to 100cm
4) Suitable to measure currents from mA to 100kA
5) Easy & quick installation in uninterruptible power line
6) Simple to install in applications where space is limited
7) The size of the Rogowski coil can be specified independently of the primary current
8) Does not suffer from magnetic saturation

Model	Current Range (A)	Voltage output (mV)	Inner diameter(mm)±10%	Perimeter (mm)
FRC-210-G1	1-1000A	3V	60mm	210mm
FRC-350-G1	1-2000A	3V	103mm	350mm
FRC-420-G1	1-3000A	3V	125mm	420mm
FRC-510-G1	1-4000A	3V	155mm	510mm
FRC-600-G1	1-5000A	3V	180mm	600mm
FRC-800-G1	1-10000A	3V	245mm	800mm

Dimensions(mm)	FRC-210-G1	FRC-350-G1	FRC-420-G1	FRC-510-G1	FRC-600 -G1	FRC-800 -G1
A Window size((mm)±10%	60mm	103mm	125mm	155mm	180mm	245mm
B Rogowski Coil O.D.(mm)±10%	73mm	120mm	141mm	171mm	201mm	266mm
C Rogowski Coil Diameter	6.5mm	8mm	8mm	8mm	10.5mm	10.5mm
D Wire Lead Diameter	4mm	4mm	4mm	4mm	4mm	4mm
